1. Material Principles and Morphological Advantages
1.1 Crystal Framework and Chemical Structure

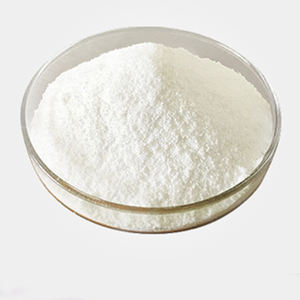

(Spherical alumina)
Round alumina, or spherical light weight aluminum oxide (Al two O THREE), is a synthetically produced ceramic product characterized by a well-defined globular morphology and a crystalline framework primarily in the alpha (α) phase.
Alpha-alumina, one of the most thermodynamically stable polymorph, includes a hexagonal close-packed setup of oxygen ions with light weight aluminum ions occupying two-thirds of the octahedral interstices, causing high lattice energy and exceptional chemical inertness.
This stage displays exceptional thermal security, preserving honesty up to 1800 ° C, and resists response with acids, antacid, and molten steels under most commercial problems.
Unlike uneven or angular alumina powders derived from bauxite calcination, round alumina is engineered through high-temperature procedures such as plasma spheroidization or fire synthesis to attain uniform satiation and smooth surface area structure.
The change from angular precursor fragments– commonly calcined bauxite or gibbsite– to dense, isotropic balls gets rid of sharp edges and inner porosity, boosting packaging effectiveness and mechanical toughness.
High-purity grades (≥ 99.5% Al ₂ O FOUR) are crucial for electronic and semiconductor applications where ionic contamination must be minimized.
1.2 Bit Geometry and Packaging Actions
The specifying attribute of spherical alumina is its near-perfect sphericity, generally evaluated by a sphericity index > 0.9, which dramatically influences its flowability and packaging density in composite systems.
In comparison to angular bits that interlock and produce gaps, round particles roll previous one another with marginal friction, allowing high solids filling throughout solution of thermal interface products (TIMs), encapsulants, and potting compounds.
This geometric harmony allows for optimum academic packaging thickness surpassing 70 vol%, much surpassing the 50– 60 vol% regular of irregular fillers.
Greater filler loading straight equates to boosted thermal conductivity in polymer matrices, as the continual ceramic network offers reliable phonon transportation pathways.
Additionally, the smooth surface area minimizes wear on handling tools and minimizes thickness increase throughout mixing, boosting processability and dispersion security.
The isotropic nature of spheres also prevents orientation-dependent anisotropy in thermal and mechanical buildings, ensuring consistent performance in all directions.
2. Synthesis Methods and Quality Control
2.1 High-Temperature Spheroidization Methods
The production of round alumina mostly depends on thermal methods that melt angular alumina particles and allow surface area tension to reshape them into balls.
( Spherical alumina)
Plasma spheroidization is one of the most commonly used industrial method, where alumina powder is injected into a high-temperature plasma flame (as much as 10,000 K), causing instantaneous melting and surface tension-driven densification into best rounds.
The liquified droplets strengthen swiftly during flight, forming thick, non-porous particles with uniform dimension distribution when paired with precise classification.
Alternate approaches consist of flame spheroidization using oxy-fuel torches and microwave-assisted home heating, though these typically provide reduced throughput or much less control over particle size.
The starting product’s purity and bit size distribution are critical; submicron or micron-scale precursors yield similarly sized rounds after processing.
Post-synthesis, the item undergoes rigorous sieving, electrostatic splitting up, and laser diffraction analysis to make certain limited particle size distribution (PSD), normally ranging from 1 to 50 µm depending on application.
2.2 Surface Modification and Useful Tailoring
To improve compatibility with organic matrices such as silicones, epoxies, and polyurethanes, spherical alumina is commonly surface-treated with combining representatives.
Silane coupling agents– such as amino, epoxy, or plastic functional silanes– type covalent bonds with hydroxyl teams on the alumina surface while providing organic capability that communicates with the polymer matrix.
This therapy improves interfacial bond, minimizes filler-matrix thermal resistance, and avoids agglomeration, bring about even more uniform compounds with premium mechanical and thermal performance.
Surface coatings can additionally be crafted to give hydrophobicity, improve dispersion in nonpolar resins, or enable stimuli-responsive actions in clever thermal materials.
Quality assurance includes measurements of BET surface, tap thickness, thermal conductivity (generally 25– 35 W/(m · K )for thick α-alumina), and contamination profiling via ICP-MS to exclude Fe, Na, and K at ppm levels.
Batch-to-batch uniformity is necessary for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and User Interface Engineering
Spherical alumina is mainly employed as a high-performance filler to enhance the thermal conductivity of polymer-based materials utilized in digital product packaging, LED lights, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), packing with 60– 70 vol% spherical alumina can boost this to 2– 5 W/(m · K), enough for effective heat dissipation in compact devices.
The high innate thermal conductivity of α-alumina, incorporated with minimal phonon spreading at smooth particle-particle and particle-matrix interfaces, enables efficient warmth transfer via percolation networks.
Interfacial thermal resistance (Kapitza resistance) stays a restricting element, however surface area functionalization and enhanced dispersion techniques help minimize this barrier.
In thermal interface products (TIMs), spherical alumina reduces get in touch with resistance between heat-generating components (e.g., CPUs, IGBTs) and heat sinks, preventing overheating and expanding gadget life-span.
Its electric insulation (resistivity > 10 ¹² Ω · centimeters) guarantees safety and security in high-voltage applications, identifying it from conductive fillers like steel or graphite.
3.2 Mechanical Stability and Integrity
Beyond thermal performance, round alumina improves the mechanical robustness of composites by raising solidity, modulus, and dimensional security.
The spherical shape distributes anxiety consistently, reducing crack initiation and breeding under thermal cycling or mechanical tons.
This is especially crucial in underfill products and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal development (CTE) inequality can induce delamination.
By adjusting filler loading and particle size circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or printed circuit boards, reducing thermo-mechanical stress.
In addition, the chemical inertness of alumina protects against destruction in humid or harsh atmospheres, making certain lasting reliability in vehicle, industrial, and outdoor electronics.
4. Applications and Technological Advancement
4.1 Electronic Devices and Electric Vehicle Solutions
Round alumina is a crucial enabler in the thermal administration of high-power electronic devices, including insulated entrance bipolar transistors (IGBTs), power materials, and battery monitoring systems in electric automobiles (EVs).
In EV battery loads, it is incorporated into potting substances and phase modification products to avoid thermal runaway by uniformly distributing heat across cells.
LED manufacturers use it in encapsulants and secondary optics to keep lumen result and shade uniformity by reducing joint temperature level.
In 5G framework and information facilities, where heat flux thickness are climbing, spherical alumina-filled TIMs guarantee steady procedure of high-frequency chips and laser diodes.
Its function is expanding right into sophisticated packaging modern technologies such as fan-out wafer-level packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Lasting Development
Future growths concentrate on crossbreed filler systems incorporating round alumina with boron nitride, aluminum nitride, or graphene to attain collaborating thermal performance while keeping electric insulation.
Nano-spherical alumina (sub-100 nm) is being checked out for clear ceramics, UV coverings, and biomedical applications, though obstacles in diffusion and price continue to be.
Additive manufacturing of thermally conductive polymer composites utilizing spherical alumina allows complicated, topology-optimized warmth dissipation frameworks.
Sustainability initiatives include energy-efficient spheroidization processes, recycling of off-spec material, and life-cycle evaluation to decrease the carbon impact of high-performance thermal materials.
In recap, spherical alumina stands for a critical crafted product at the junction of ceramics, composites, and thermal scientific research.
Its distinct combination of morphology, pureness, and performance makes it vital in the continuous miniaturization and power surge of contemporary electronic and energy systems.
5. Distributor
TRUNNANO is a globally recognized Spherical alumina manufacturer and supplier of compounds with more than 12 years of expertise in the highest quality nanomaterials and other chemicals. The company develops a variety of powder materials and chemicals. Provide OEM service. If you need high quality Spherical alumina, please feel free to contact us. You can click on the product to contact us.
