1. Crystal Structure and Polytypism of Silicon Carbide
1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Beyond
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently bound ceramic composed of silicon and carbon atoms arranged in a tetrahedral control, creating among one of the most complex systems of polytypism in materials scientific research.
Unlike the majority of ceramics with a single secure crystal structure, SiC exists in over 250 known polytypes– distinct piling series of close-packed Si-C bilayers along the c-axis– varying from cubic 3C-SiC (additionally called β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.
One of the most common polytypes made use of in design applications are 3C (cubic), 4H, and 6H (both hexagonal), each displaying a little various digital band frameworks and thermal conductivities.
3C-SiC, with its zinc blende structure, has the narrowest bandgap (~ 2.3 eV) and is typically expanded on silicon substrates for semiconductor devices, while 4H-SiC provides exceptional electron wheelchair and is liked for high-power electronic devices.
The strong covalent bonding and directional nature of the Si– C bond provide remarkable firmness, thermal security, and resistance to sneak and chemical attack, making SiC ideal for severe atmosphere applications.
1.2 Problems, Doping, and Digital Characteristic
Despite its structural complexity, SiC can be doped to achieve both n-type and p-type conductivity, allowing its usage in semiconductor tools.
Nitrogen and phosphorus function as donor pollutants, introducing electrons into the transmission band, while aluminum and boron serve as acceptors, developing holes in the valence band.
Nonetheless, p-type doping efficiency is limited by high activation powers, especially in 4H-SiC, which postures obstacles for bipolar device design.
Indigenous flaws such as screw dislocations, micropipes, and stacking mistakes can break down device performance by acting as recombination facilities or leak courses, necessitating top quality single-crystal development for electronic applications.
The large bandgap (2.3– 3.3 eV relying on polytype), high break down electric area (~ 3 MV/cm), and excellent thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC far superior to silicon in high-temperature, high-voltage, and high-frequency power electronics.
2. Handling and Microstructural Design

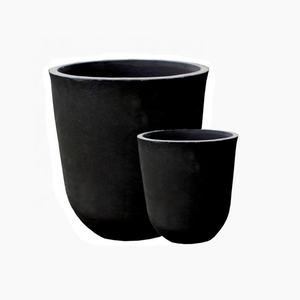

( Silicon Carbide Ceramics)
2.1 Sintering and Densification Methods
Silicon carbide is inherently difficult to compress as a result of its solid covalent bonding and low self-diffusion coefficients, requiring advanced handling approaches to attain full density without additives or with marginal sintering aids.
Pressureless sintering of submicron SiC powders is possible with the addition of boron and carbon, which promote densification by removing oxide layers and improving solid-state diffusion.
Warm pressing uses uniaxial pressure during heating, enabling full densification at reduced temperatures (~ 1800– 2000 ° C )and creating fine-grained, high-strength components suitable for cutting devices and use parts.
For huge or complex shapes, response bonding is utilized, where porous carbon preforms are infiltrated with liquified silicon at ~ 1600 ° C, forming β-SiC in situ with marginal contraction.
Nevertheless, recurring complimentary silicon (~ 5– 10%) continues to be in the microstructure, limiting high-temperature efficiency and oxidation resistance over 1300 ° C.
2.2 Additive Production and Near-Net-Shape Manufacture
Current breakthroughs in additive production (AM), particularly binder jetting and stereolithography making use of SiC powders or preceramic polymers, enable the manufacture of complex geometries formerly unattainable with standard approaches.
In polymer-derived ceramic (PDC) courses, fluid SiC precursors are shaped through 3D printing and afterwards pyrolyzed at high temperatures to yield amorphous or nanocrystalline SiC, commonly requiring more densification.
These strategies lower machining expenses and product waste, making SiC a lot more obtainable for aerospace, nuclear, and warm exchanger applications where detailed designs boost performance.
Post-processing steps such as chemical vapor infiltration (CVI) or fluid silicon seepage (LSI) are occasionally used to enhance density and mechanical integrity.
3. Mechanical, Thermal, and Environmental Performance
3.1 Toughness, Solidity, and Put On Resistance
Silicon carbide rates among the hardest well-known products, with a Mohs hardness of ~ 9.5 and Vickers hardness exceeding 25 GPa, making it extremely immune to abrasion, disintegration, and scraping.
Its flexural strength typically ranges from 300 to 600 MPa, depending upon handling method and grain size, and it keeps strength at temperatures up to 1400 ° C in inert environments.
Fracture durability, while modest (~ 3– 4 MPa · m Âą/ TWO), suffices for many structural applications, specifically when incorporated with fiber reinforcement in ceramic matrix compounds (CMCs).
SiC-based CMCs are made use of in wind turbine blades, combustor liners, and brake systems, where they use weight financial savings, fuel efficiency, and prolonged life span over metallic equivalents.
Its outstanding wear resistance makes SiC perfect for seals, bearings, pump components, and ballistic armor, where sturdiness under severe mechanical loading is essential.
3.2 Thermal Conductivity and Oxidation Stability
One of SiC’s most important residential or commercial properties is its high thermal conductivity– as much as 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline types– surpassing that of several metals and enabling effective warm dissipation.
This building is essential in power electronics, where SiC gadgets create much less waste warmth and can run at higher power thickness than silicon-based devices.
At elevated temperatures in oxidizing settings, SiC forms a protective silica (SiO TWO) layer that slows down additional oxidation, offering great ecological toughness approximately ~ 1600 ° C.
Nonetheless, in water vapor-rich environments, this layer can volatilize as Si(OH)FOUR, bring about accelerated destruction– an essential obstacle in gas wind turbine applications.
4. Advanced Applications in Power, Electronics, and Aerospace
4.1 Power Electronic Devices and Semiconductor Gadgets
Silicon carbide has actually reinvented power electronics by enabling devices such as Schottky diodes, MOSFETs, and JFETs that operate at higher voltages, frequencies, and temperature levels than silicon equivalents.
These devices reduce energy losses in electrical lorries, renewable energy inverters, and commercial motor drives, adding to global energy performance improvements.
The capability to operate at junction temperature levels over 200 ° C allows for simplified cooling systems and enhanced system dependability.
In addition, SiC wafers are made use of as substrates for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), combining the benefits of both wide-bandgap semiconductors.
4.2 Nuclear, Aerospace, and Optical Solutions
In nuclear reactors, SiC is a key component of accident-tolerant fuel cladding, where its low neutron absorption cross-section, radiation resistance, and high-temperature toughness improve safety and security and efficiency.
In aerospace, SiC fiber-reinforced composites are utilized in jet engines and hypersonic vehicles for their lightweight and thermal security.
Additionally, ultra-smooth SiC mirrors are used precede telescopes due to their high stiffness-to-density proportion, thermal security, and polishability to sub-nanometer roughness.
In recap, silicon carbide porcelains represent a cornerstone of modern-day sophisticated materials, integrating phenomenal mechanical, thermal, and electronic residential properties.
With exact control of polytype, microstructure, and handling, SiC continues to enable technical breakthroughs in power, transportation, and extreme environment design.
