1. Basic Composition and Architectural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Change

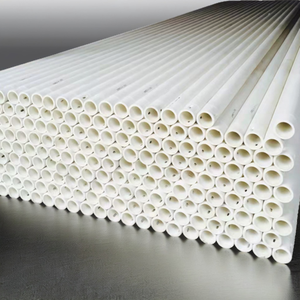

(Quartz Ceramics)
Quartz porcelains, also called fused silica or integrated quartz, are a course of high-performance inorganic materials derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) form.
Unlike traditional ceramics that depend on polycrystalline frameworks, quartz porcelains are distinguished by their complete lack of grain borders as a result of their glassy, isotropic network of SiO four tetrahedra interconnected in a three-dimensional arbitrary network.
This amorphous framework is accomplished via high-temperature melting of all-natural quartz crystals or artificial silica precursors, complied with by rapid cooling to stop formation.
The resulting material contains generally over 99.9% SiO ₂, with trace impurities such as alkali steels (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million degrees to preserve optical clearness, electrical resistivity, and thermal efficiency.
The absence of long-range order gets rid of anisotropic actions, making quartz ceramics dimensionally stable and mechanically uniform in all instructions– a crucial advantage in accuracy applications.
1.2 Thermal Actions and Resistance to Thermal Shock
Among one of the most specifying features of quartz ceramics is their extremely low coefficient of thermal development (CTE), normally around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero growth occurs from the flexible Si– O– Si bond angles in the amorphous network, which can readjust under thermal stress and anxiety without damaging, permitting the material to stand up to fast temperature adjustments that would crack traditional porcelains or steels.
Quartz porcelains can withstand thermal shocks going beyond 1000 ° C, such as straight immersion in water after heating to heated temperature levels, without breaking or spalling.
This building makes them essential in atmospheres involving duplicated home heating and cooling down cycles, such as semiconductor handling heating systems, aerospace elements, and high-intensity illumination systems.
In addition, quartz porcelains keep structural integrity up to temperature levels of approximately 1100 ° C in constant service, with temporary direct exposure tolerance coming close to 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Beyond thermal shock resistance, they exhibit high softening temperatures (~ 1600 ° C )and exceptional resistance to devitrification– though prolonged direct exposure above 1200 ° C can start surface area crystallization into cristobalite, which might endanger mechanical strength as a result of quantity adjustments during phase shifts.
2. Optical, Electric, and Chemical Qualities of Fused Silica Solution
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their remarkable optical transmission throughout a vast spooky variety, extending from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the lack of impurities and the homogeneity of the amorphous network, which lessens light scattering and absorption.
High-purity synthetic merged silica, created by means of flame hydrolysis of silicon chlorides, attains even higher UV transmission and is used in critical applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damage limit– withstanding failure under extreme pulsed laser irradiation– makes it suitable for high-energy laser systems utilized in blend research and industrial machining.
In addition, its reduced autofluorescence and radiation resistance guarantee dependability in clinical instrumentation, consisting of spectrometers, UV healing systems, and nuclear tracking gadgets.
2.2 Dielectric Performance and Chemical Inertness
From an electric standpoint, quartz porcelains are outstanding insulators with volume resistivity going beyond 10 ¹⁸ Ω · cm at area temperature level and a dielectric constant of about 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) makes certain minimal energy dissipation in high-frequency and high-voltage applications, making them suitable for microwave home windows, radar domes, and protecting substrates in electronic settings up.
These homes remain secure over a broad temperature array, unlike lots of polymers or conventional ceramics that weaken electrically under thermal stress.
Chemically, quartz ceramics show exceptional inertness to a lot of acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the security of the Si– O bond.
Nevertheless, they are prone to attack by hydrofluoric acid (HF) and strong alkalis such as warm sodium hydroxide, which damage the Si– O– Si network.
This selective sensitivity is made use of in microfabrication procedures where controlled etching of fused silica is called for.
In hostile commercial atmospheres– such as chemical handling, semiconductor damp benches, and high-purity liquid handling– quartz ceramics function as liners, sight glasses, and reactor elements where contamination need to be reduced.
3. Manufacturing Processes and Geometric Engineering of Quartz Ceramic Parts
3.1 Thawing and Developing Strategies
The production of quartz ceramics entails a number of specialized melting techniques, each tailored to details pureness and application demands.
Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, creating huge boules or tubes with superb thermal and mechanical buildings.
Fire fusion, or burning synthesis, entails shedding silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, transferring great silica bits that sinter into a clear preform– this method generates the highest optical quality and is used for synthetic merged silica.
Plasma melting uses an alternative route, supplying ultra-high temperatures and contamination-free processing for niche aerospace and defense applications.
Once melted, quartz porcelains can be formed with precision casting, centrifugal forming (for tubes), or CNC machining of pre-sintered blanks.
Due to their brittleness, machining calls for diamond tools and careful control to avoid microcracking.
3.2 Precision Manufacture and Surface Finishing
Quartz ceramic components are often fabricated into complex geometries such as crucibles, tubes, poles, windows, and custom insulators for semiconductor, photovoltaic, and laser markets.
Dimensional precision is vital, particularly in semiconductor production where quartz susceptors and bell containers need to preserve specific positioning and thermal uniformity.
Surface area finishing plays an important role in performance; polished surfaces decrease light scattering in optical parts and reduce nucleation websites for devitrification in high-temperature applications.
Etching with buffered HF options can generate controlled surface area textures or get rid of harmed layers after machining.
For ultra-high vacuum (UHV) systems, quartz porcelains are cleansed and baked to remove surface-adsorbed gases, guaranteeing very little outgassing and compatibility with sensitive processes like molecular beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are fundamental materials in the manufacture of integrated circuits and solar batteries, where they act as heating system tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to stand up to heats in oxidizing, minimizing, or inert ambiences– incorporated with low metallic contamination– makes certain process pureness and return.
During chemical vapor deposition (CVD) or thermal oxidation, quartz parts maintain dimensional security and resist warping, protecting against wafer breakage and misalignment.
In solar production, quartz crucibles are used to expand monocrystalline silicon ingots using the Czochralski procedure, where their pureness straight affects the electric quality of the last solar cells.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes have plasma arcs at temperatures exceeding 1000 ° C while sending UV and noticeable light efficiently.
Their thermal shock resistance prevents failing throughout fast light ignition and shutdown cycles.
In aerospace, quartz porcelains are made use of in radar windows, sensor real estates, and thermal defense systems because of their low dielectric consistent, high strength-to-density proportion, and stability under aerothermal loading.
In analytical chemistry and life scientific researches, merged silica capillaries are crucial in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness protects against example adsorption and guarantees precise separation.
Additionally, quartz crystal microbalances (QCMs), which depend on the piezoelectric buildings of crystalline quartz (unique from merged silica), make use of quartz ceramics as protective real estates and insulating supports in real-time mass noticing applications.
Finally, quartz ceramics stand for a distinct crossway of extreme thermal durability, optical openness, and chemical purity.
Their amorphous framework and high SiO ₂ material make it possible for efficiency in settings where conventional products fall short, from the heart of semiconductor fabs to the side of room.
As technology developments towards greater temperatures, better precision, and cleaner processes, quartz ceramics will continue to work as a crucial enabler of advancement across science and sector.
