1. Chemical and Structural Fundamentals of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

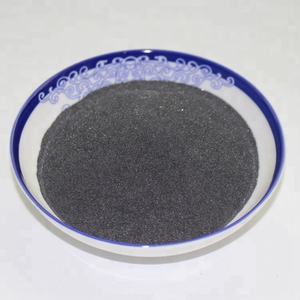

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic compound renowned for its phenomenal solidity, thermal stability, and neutron absorption capacity, positioning it among the hardest well-known materials– exceeded only by cubic boron nitride and diamond.
Its crystal framework is based on a rhombohedral latticework composed of 12-atom icosahedra (mainly B ₁₂ or B ₁₁ C) interconnected by direct C-B-C or C-B-B chains, creating a three-dimensional covalent network that conveys remarkable mechanical stamina.
Unlike several ceramics with repaired stoichiometry, boron carbide shows a wide range of compositional versatility, normally ranging from B FOUR C to B ₁₀. SIX C, as a result of the replacement of carbon atoms within the icosahedra and architectural chains.
This irregularity affects crucial homes such as solidity, electric conductivity, and thermal neutron capture cross-section, permitting residential or commercial property tuning based on synthesis problems and desired application.
The visibility of innate issues and condition in the atomic plan likewise contributes to its distinct mechanical actions, consisting of a phenomenon called “amorphization under tension” at high pressures, which can restrict efficiency in severe effect situations.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mostly created with high-temperature carbothermal reduction of boron oxide (B ₂ O TWO) with carbon sources such as petroleum coke or graphite in electrical arc furnaces at temperatures in between 1800 ° C and 2300 ° C.
The reaction continues as: B ₂ O THREE + 7C → 2B ₄ C + 6CO, yielding coarse crystalline powder that calls for subsequent milling and purification to attain penalty, submicron or nanoscale particles suitable for innovative applications.
Alternate techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer courses to greater purity and regulated bit dimension circulation, though they are usually limited by scalability and cost.
Powder qualities– including particle size, form, jumble state, and surface chemistry– are crucial parameters that affect sinterability, packaging thickness, and final element efficiency.
As an example, nanoscale boron carbide powders exhibit enhanced sintering kinetics as a result of high surface area power, making it possible for densification at reduced temperature levels, however are susceptible to oxidation and call for protective environments throughout handling and handling.
Surface functionalization and finishing with carbon or silicon-based layers are progressively utilized to boost dispersibility and prevent grain development throughout combination.

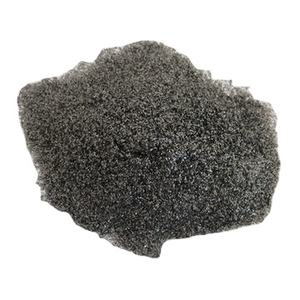

( Boron Carbide Podwer)
2. Mechanical Features and Ballistic Efficiency Mechanisms
2.1 Hardness, Fracture Sturdiness, and Use Resistance
Boron carbide powder is the forerunner to one of the most reliable light-weight shield products offered, owing to its Vickers solidity of roughly 30– 35 Grade point average, which allows it to wear down and blunt inbound projectiles such as bullets and shrapnel.
When sintered into dense ceramic floor tiles or integrated right into composite shield systems, boron carbide outshines steel and alumina on a weight-for-weight basis, making it suitable for employees protection, car armor, and aerospace securing.
Nevertheless, regardless of its high firmness, boron carbide has fairly reduced fracture sturdiness (2.5– 3.5 MPa · m ONE / ²), providing it vulnerable to breaking under localized impact or duplicated loading.
This brittleness is exacerbated at high strain rates, where vibrant failure systems such as shear banding and stress-induced amorphization can lead to disastrous loss of architectural integrity.
Ongoing study concentrates on microstructural design– such as introducing additional stages (e.g., silicon carbide or carbon nanotubes), creating functionally graded compounds, or developing ordered architectures– to alleviate these restrictions.
2.2 Ballistic Energy Dissipation and Multi-Hit Ability
In individual and automotive shield systems, boron carbide ceramic tiles are normally backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in recurring kinetic energy and have fragmentation.
Upon influence, the ceramic layer fractures in a controlled way, dissipating energy via mechanisms consisting of particle fragmentation, intergranular breaking, and phase transformation.
The fine grain structure stemmed from high-purity, nanoscale boron carbide powder improves these power absorption procedures by boosting the density of grain borders that restrain fracture breeding.
Current advancements in powder handling have actually resulted in the development of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated frameworks that improve multi-hit resistance– an essential requirement for armed forces and police applications.
These engineered materials maintain protective performance also after first impact, dealing with an essential constraint of monolithic ceramic shield.
3. Neutron Absorption and Nuclear Design Applications
3.1 Communication with Thermal and Rapid Neutrons
Beyond mechanical applications, boron carbide powder plays a crucial function in nuclear innovation as a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control poles, shielding materials, or neutron detectors, boron carbide properly manages fission reactions by recording neutrons and going through the ¹⁰ B( n, α) ⁷ Li nuclear reaction, producing alpha fragments and lithium ions that are conveniently consisted of.
This building makes it essential in pressurized water reactors (PWRs), boiling water activators (BWRs), and research study activators, where accurate neutron change control is vital for secure operation.
The powder is commonly made into pellets, finishes, or spread within metal or ceramic matrices to develop composite absorbers with customized thermal and mechanical residential properties.
3.2 Stability Under Irradiation and Long-Term Performance
A critical benefit of boron carbide in nuclear settings is its high thermal stability and radiation resistance up to temperature levels going beyond 1000 ° C.
However, prolonged neutron irradiation can cause helium gas build-up from the (n, α) reaction, creating swelling, microcracking, and degradation of mechanical honesty– a sensation known as “helium embrittlement.”
To alleviate this, researchers are establishing doped boron carbide formulations (e.g., with silicon or titanium) and composite layouts that fit gas launch and maintain dimensional stability over extended service life.
Furthermore, isotopic enrichment of ¹⁰ B improves neutron capture effectiveness while reducing the total material volume needed, boosting activator design flexibility.
4. Arising and Advanced Technological Integrations
4.1 Additive Production and Functionally Rated Parts
Current progression in ceramic additive production has actually made it possible for the 3D printing of complex boron carbide elements using methods such as binder jetting and stereolithography.
In these procedures, great boron carbide powder is precisely bound layer by layer, followed by debinding and high-temperature sintering to attain near-full thickness.
This ability permits the manufacture of customized neutron protecting geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is integrated with metals or polymers in functionally graded layouts.
Such styles enhance efficiency by integrating solidity, durability, and weight efficiency in a single part, opening brand-new frontiers in protection, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Beyond protection and nuclear industries, boron carbide powder is used in rough waterjet reducing nozzles, sandblasting liners, and wear-resistant finishings because of its extreme hardness and chemical inertness.
It outmatches tungsten carbide and alumina in erosive atmospheres, specifically when exposed to silica sand or various other tough particulates.
In metallurgy, it functions as a wear-resistant liner for hoppers, chutes, and pumps managing unpleasant slurries.
Its reduced thickness (~ 2.52 g/cm TWO) additional improves its charm in mobile and weight-sensitive industrial tools.
As powder quality boosts and handling innovations advance, boron carbide is poised to expand right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
In conclusion, boron carbide powder represents a keystone product in extreme-environment design, integrating ultra-high hardness, neutron absorption, and thermal strength in a solitary, versatile ceramic system.
Its role in securing lives, allowing nuclear energy, and progressing commercial efficiency highlights its strategic significance in modern-day innovation.
With proceeded advancement in powder synthesis, microstructural design, and making assimilation, boron carbide will certainly stay at the leading edge of sophisticated materials growth for decades to find.
