Bearings are commonly called the “joints of sector.” Obtaining the selection right straight affects your devices’s reliability, service life, and upkeep expenses. Lots of bearing failings do not come from poor quality– they originate from incorrect selections. Things like load computation errors, overlooking rate limitations, or choosing the incorrect lubrication approach. These little mistakes can create tools to break down early in its life span. This guide strolls you with the entire selection process, giving designers and procurement experts a clear course from assessing working problems to verifying the best bearing version.
Component One: What You Need to Know Prior To Beginning
Before you open up any kind of bearing catalog, ask yourself one inquiry: Exactly what does this equipment need the bearing to do? The solution hinges on five essential areas:
1. Load Attributes
Lots is the top consider birthing option. You need to identify three points:
Direction: Is it radial lots (vertical to the shaft), axial load (alongside the shaft), or a combination of both?
Size: Is it light, modest, or heavy? Any impact tons?
Nature: Is the load consistent or changing? Exactly how typically do effect loads happen and exactly how strong are they?
Take a belt conveyor for instance. The bearings at the drive end handle radial loads from belt tension, the weight of the belt and rollers, plus the shaft assembly. When calculating, you need to consider various operating conditions– start-up, typical operating, stopping– and utilize the worst-case scenario for your layout.
2. Rate Problems
(bearings for steel mill)
Rate is another crucial aspect affecting birthing life. According to tiredness life theory, birthing life has an inverted relationship with speed. For variable speed problems, you need to compute the equal rate. Take a rotating kiln support roller– its rate might vary from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to get an equal value.
One thing to watch out for: understanding only the maximum speed can mess up your lubrication method. The lubricating substance you select based on top speed may not develop an appropriate oil film at lower rates. Additionally, if your equipment has long idle periods, you should state that– otherwise nearby equipment resonances might cause false brinelling damages.
3. Required Life Span
Birthing service life is usually shared as L10h (the variety of hours that 90% of a bearing group will certainly reach before fatigue spalling shows up). A typical mistake is choosing an excessively long life– as soon as L10h exceeds 100,000 hours, the bearing size gets too huge. It comes to be more challenging to oil, torque rises, and it comes to be more sensitive to minimum load. Ultimately, it might stop working for reasons besides tiredness.
4. Room Restrictions
You need to recognize your readily available room restrictions from the start– shaft diameter array, housing birthed size, axial size limits. When you understand the matching shaft diameter and readily available room, you can rapidly limit your options.
5. Running Precision Demands
A lot of applications do just fine with conventional accuracy bearings. But also for high-speed or high-precision equipment like machine device spindles, you’ll require P5, P4, or perhaps greater qualities. Simply remember that choosing greater accuracy without a genuine requirement will certainly increase costs significantly. Suit the grade to your actual demands.
Sequel: Matching Bearing Kinds to Functioning Conditions
When you have those specifications clear, the following action is to match the best bearing kind based on tons direction, size, speed, and misalignment tolerance.
1. Lots Direction: Radial, Axial, or Integrated?
This is the most standard filter. It can aim you to a few prospects as soon as possible:

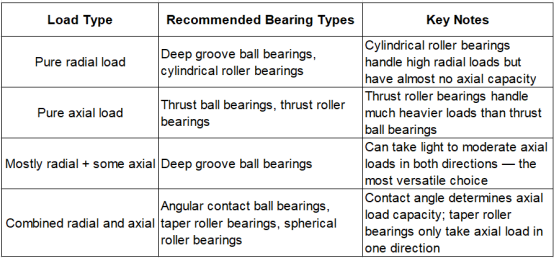

When the axial-to-radial tons ratio (Fa/Fr) modifications, your choice logic changes also. At reduced ratios, select deep groove round bearings. At moderate ratios, utilize small-contact-angle angular get in touch with bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or consider incorporating a drive bearing with a radial bearing.
( Radial)
2. Load Size: Round Bearings or Roller Bearings?
This is a classic option:
Light or moderate tons: Go with ball bearings (deep groove or angular contact). The point get in touch with between balls and raceways provides lower rubbing, making them appropriate for medium to high speeds.
Hefty or impact loads: You have to use roller bearings (round, round, or taper). Line contact between rollers and raceways supplies much greater load capacity and much better effect resistance.
3. Rate: Sphere Bearings for High Speed, Roller Bearings for Low
Normally speaking, round bearings have greater rate restrictions than roller bearings. For high-speed applications (above 1000 r/min), put round bearings at the top of your listing. When you require the highest feasible rate with pure radial lots, open deep groove ball bearings are your best choice. For combined loads at broadband, angular call ball bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably lower speed limits. They’re mostly matched for low-to-medium rate, heavy-load problems.
4. Misalignment Resistance: Do You Need Self-Aligning?
This typically obtains ignored however it’s exceptionally important. You should take into consideration self-aligning bearings when:
Bearing housing bores don’t align well
The shaft isn’t tight sufficient and bends throughout procedure
The bearing period is lengthy and thermal growth creates angular imbalance
You’re utilizing separate split real estates (like cushion block bearings)
Round roller bearings and round bearings have concave external ring raceways. This permits a particular amount of angular misalignment between the inner and outer rings without unsafe edge stress and anxiety. They can make up for both dynamic deflection and static setup mistakes.
On the various other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have very restricted self-aligning ability. Even a tiny angular imbalance can create anxiety focus at the roller ends, resulting in high edge pressures that significantly reduce birthing life. Deep groove ball bearings do have some self-aligning capacity, but the allowed angle is tiny– surpassing it will certainly lower life too.
5. Axial Expansion Settlement: Fixed End or Drifting End?
Lengthy shafts increase and agreement with temperature level adjustments throughout operation. That implies you need to set up your bearing setup with one set end and one drifting end.
NU and N series cylindrical roller bearings have no flanges on the internal ring (or on one side). This allows the shaft step freely in the axial instructions relative to the housing– making them perfect as floating-end bearings. NJ and NUP series can provide axial positioning in one or both instructions, so they function well as fixed-end bearings. This arrangement is very common in gearboxes and electrical motors.

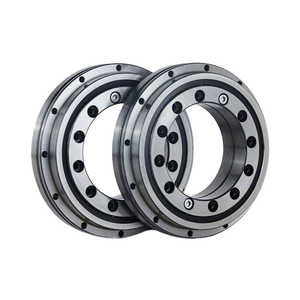

Part 3: BMB Product at a Look

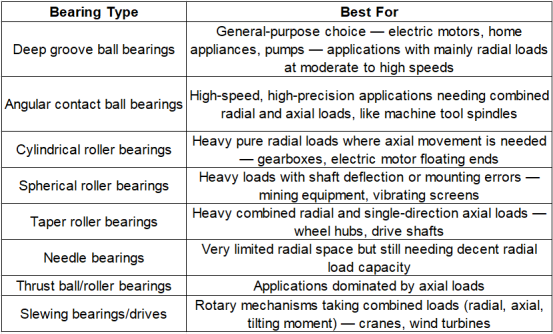

BMB uses a total variety of commercial bearings, covering all the major types we’ve talked about. This quick recommendation table links the selection principles above directly to certain item groups:
Part 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Requirement precision (P0) benefits the large bulk of basic machinery. For accuracy equipment like machine device pins or aerospace parts, you’ll need P5 or higher. Tighter accuracy implies tighter dimensional resistances and far better running accuracy– however likewise higher costs.
2. Interior Clearance and Preload
Bearings need to keep correct inner clearance after installment. Too much clearance brings about resonance and noise. Too little, and thermal development can trigger the bearing to confiscate. In grandfather clauses like maker tool spindles, preload (applying adverse clearance) is utilized to enhance system rigidness and rotational precision.
3. Lube Option
Lubrication is a make-or-break factor for bearing life. Oil helps a lot of moderate-speed and temperature level applications– it’s simple to seal and can run maintenance-free for long periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature problems, as it dissipates warmth better. When picking a lubricating substance, examine the speed aspect (ndm value). Don’t just pick based on optimum rate– the oil you choose could not develop an appropriate film at reduced rates.
4. Securing Program
Choose the seal kind based upon your environment: contact seals keep dirt out well but include some rubbing; non-contact seals help high speeds but offer less security against contamination; open bearings depend on exterior securing systems.
Part Five: Life Estimation– From Concept to Practice
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your selected bearing will in fact satisfy the expected service life. This is where standard ranking life estimation is available in.
The fundamental score life L10 formula (ISO 281 criterion):
For sphere bearings: L10 = (C/P) FOUR × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: standard vibrant load ranking (kN)– located in the product magazine
P: comparable dynamic lots (kN)– takes both radial and axial loads right into account
The equal vibrant lots P is determined as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial lots
X and Y are coefficients that depend on bearing kind and the Fa/Fr ratio– inspect the directory for these worths
For even more requiring conditions, you can use adjustment elements: Ln = a1 × a2 × a3 × L10
a1 is the dependability element (a1 = 1 for 90% reliability, concerning 0.21 for 99%)
a2 is the material variable (top notch bearing steel can reach 1.5 to 2)
a3 is the operating problems variable (excellent lubrication and cleanliness can give 2 to 3)
With this calculation, designers can validate that the picked bearing fulfills the necessary life span. It also helps compare several options and make data-driven choices.
This overview has actually strolled you via the full choice path– from assessing working conditions, to matching the ideal bearing kind, to validating life expectancy. Understanding and applying this approach will help you make accurate, effective, and cost-efficient bearing decisions across a large range of commercial applications.
