Intro: Trick gadgets in power electronics
Silicon-controlled rectifiers (SCRs), additionally referred to as thyristors, are semiconductor power devices with a four-layer three-way joint framework (PNPN). Considering that its intro in the 1950s, SCRs have been extensively made use of in industrial automation, power systems, home device control and other areas because of their high stand up to voltage, big current lugging capacity, rapid action and easy control. With the growth of modern technology, SCRs have progressed into several kinds, including unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions in between these types are not just reflected in the framework and functioning concept, yet likewise establish their applicability in different application scenarios. This short article will certainly begin with a technological perspective, combined with specific parameters, to deeply evaluate the major differences and normal uses these four SCRs.
Unidirectional SCR: Fundamental and stable application core
Unidirectional SCR is the most standard and common kind of thyristor. Its framework is a four-layer three-junction PNPN setup, including 3 electrodes: anode (A), cathode (K) and gateway (G). It only allows existing to stream in one direction (from anode to cathode) and activates after the gate is set off. As soon as turned on, even if eviction signal is removed, as long as the anode current is higher than the holding existing (generally much less than 100mA), the SCR continues to be on.

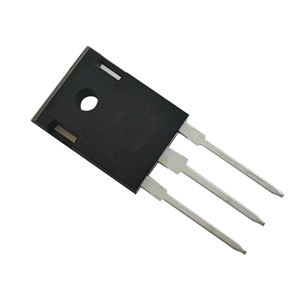

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and current resistance, with a forward recurring peak voltage (V DRM) of up to 6500V and a ranked on-state typical current (ITAV) of as much as 5000A. As a result, it is widely used in DC motor control, industrial heating unit, uninterruptible power supply (UPS) correction components, power conditioning devices and other events that call for continuous transmission and high power handling. Its advantages are easy framework, low cost and high integrity, and it is a core part of several traditional power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, also called TRIAC, can achieve bidirectional conduction in both favorable and unfavorable fifty percent cycles. This framework contains 2 anti-parallel SCRs, which allow TRIAC to be caused and activated at any time in the AC cycle without altering the circuit connection approach. The in proportion transmission voltage variety of TRIAC is typically ± 400 ~ 800V, the optimum load current is about 100A, and the trigger current is less than 50mA.
As a result of the bidirectional conduction attributes of TRIAC, it is specifically ideal for AC dimming and rate control in house home appliances and customer electronics. For instance, gadgets such as light dimmers, fan controllers, and air conditioning system fan rate regulators all rely upon TRIAC to attain smooth power policy. Additionally, TRIAC additionally has a reduced driving power demand and appropriates for integrated design, so it has actually been widely made use of in smart home systems and small home appliances. Although the power thickness and changing speed of TRIAC are not like those of new power devices, its low cost and hassle-free usage make it a vital gamer in the area of small and medium power air conditioner control.
Entrance Turn-Off Thyristor (GTO): A high-performance representative of active control
Gate Turn-Off Thyristor (GTO) is a high-performance power tool created on the basis of conventional SCR. Unlike normal SCR, which can just be turned off passively, GTO can be switched off actively by using a negative pulse present to the gate, therefore attaining more adaptable control. This feature makes GTO perform well in systems that require regular start-stop or fast reaction.

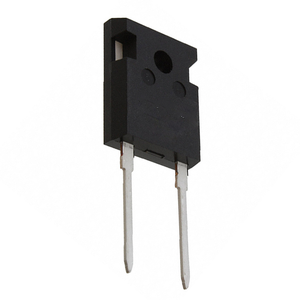

(Thyristor Rectifier)
The technological parameters of GTO show that it has very high power dealing with capacity: the turn-off gain is about 4 ~ 5, the optimum operating voltage can reach 6000V, and the maximum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance indicators make GTO extensively utilized in high-power situations such as electric engine traction systems, huge inverters, commercial motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complicated and has high switching losses, its performance under high power and high dynamic reaction requirements is still irreplaceable.
Light-controlled thyristor (LTT): A reputable choice in the high-voltage seclusion setting
Light-controlled thyristor (LTT) makes use of optical signals as opposed to electrical signals to activate conduction, which is its biggest feature that identifies it from various other types of SCRs. The optical trigger wavelength of LTT is usually between 850nm and 950nm, the action time is gauged in milliseconds, and the insulation degree can be as high as 100kV or over. This optoelectronic isolation system significantly boosts the system’s anti-electromagnetic interference ability and safety and security.
LTT is mainly used in ultra-high voltage direct present transmission (UHVDC), power system relay protection gadgets, electro-magnetic compatibility protection in clinical devices, and army radar communication systems and so on, which have exceptionally high demands for security and stability. As an example, several converter stations in China’s “West-to-East Power Transmission” task have actually embraced LTT-based converter valve components to ensure stable procedure under very high voltage conditions. Some progressed LTTs can additionally be incorporated with gate control to attain bidirectional transmission or turn-off functions, further broadening their application variety and making them a perfect selection for fixing high-voltage and high-current control troubles.
