Introduction to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has gotten widespread acknowledgment for its extraordinary thermal conductivity, electric insulation, and mechanical stability at raised temperature levels. With a hexagonal wurtzite crystal structure, AlN displays an unique combination of residential or commercial properties that make it the most suitable substrate product for applications in electronics, optoelectronics, power modules, and high-temperature atmospheres. Its capability to successfully dissipate heat while preserving exceptional dielectric toughness placements AlN as a superior option to typical ceramic substrates such as alumina and beryllium oxide. This post checks out the basic attributes of light weight aluminum nitride ceramics, looks into construction techniques, and highlights its crucial functions throughout sophisticated technological domain names.

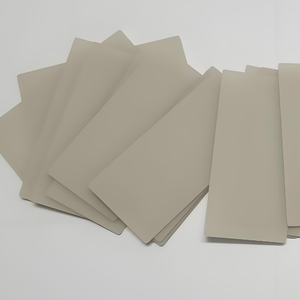

(Aluminum Nitride Ceramics)
Crystal Framework and Essential Characteristic
The efficiency of aluminum nitride as a substrate product is greatly determined by its crystalline framework and inherent physical residential or commercial properties. AlN takes on a wurtzite-type latticework composed of alternating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– normally going beyond 180 W/(m · K), with some high-purity samples accomplishing over 320 W/(m · K). This worth significantly surpasses those of other commonly made use of ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN has a vast bandgap of roughly 6.2 eV, resulting in superb electrical insulation residential or commercial properties also at high temperatures. It additionally demonstrates low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimum suit for semiconductor tool product packaging. In addition, AlN shows high chemical inertness and resistance to thaw steels, improving its suitability for harsh environments. These mixed characteristics develop AlN as a leading candidate for high-power digital substratums and thermally took care of systems.
Fabrication and Sintering Technologies
Making top notch light weight aluminum nitride ceramics requires specific powder synthesis and sintering methods to accomplish dense microstructures with very little impurities. As a result of its covalent bonding nature, AlN does not conveniently compress with standard pressureless sintering. Consequently, sintering help such as yttrium oxide (Y TWO O ₃), calcium oxide (CaO), or unusual planet elements are usually contributed to advertise liquid-phase sintering and boost grain border diffusion.
The manufacture procedure normally begins with the carbothermal decrease of light weight aluminum oxide in a nitrogen environment to synthesize AlN powders. These powders are after that grated, shaped through approaches like tape casting or injection molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pushing or stimulate plasma sintering (SPS) can further boost thickness and thermal conductivity by lowering porosity and promoting grain placement. Advanced additive manufacturing methods are likewise being explored to produce complex-shaped AlN elements with tailored thermal management abilities.
Application in Digital Product Packaging and Power Modules
One of the most famous uses light weight aluminum nitride porcelains remains in digital product packaging, especially for high-power devices such as insulated entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities enhance in modern electronics, reliable warmth dissipation ends up being essential to guarantee dependability and durability. AlN substratums give an optimal solution by combining high thermal conductivity with excellent electric isolation, avoiding brief circuits and thermal runaway conditions.
Furthermore, AlN-based straight bound copper (DBC) and active metal brazed (AMB) substratums are significantly employed in power component layouts for electric automobiles, renewable energy inverters, and commercial electric motor drives. Compared to typical alumina or silicon nitride substrates, AlN offers much faster heat transfer and better compatibility with silicon chip coefficients of thermal development, therefore minimizing mechanical stress and anxiety and boosting overall system performance. Ongoing research aims to enhance the bonding stamina and metallization techniques on AlN surface areas to additional broaden its application scope.
Use in Optoelectronic and High-Temperature Instruments
Beyond electronic packaging, light weight aluminum nitride ceramics play an essential function in optoelectronic and high-temperature applications as a result of their openness to ultraviolet (UV) radiation and thermal stability. AlN is extensively made use of as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications requiring sterilization, sensing, and optical communication. Its wide bandgap and low absorption coefficient in the UV array make it a perfect candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capacity to operate reliably at temperature levels surpassing 1000 ° C makes it suitable for use in sensors, thermoelectric generators, and parts subjected to severe thermal lots. In aerospace and defense industries, AlN-based sensor plans are utilized in jet engine tracking systems and high-temperature control units where conventional materials would stop working. Continuous advancements in thin-film deposition and epitaxial development methods are broadening the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.

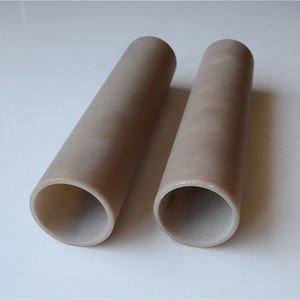

( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Integrity
A vital factor to consider for any substrate material is its long-term dependability under operational stress and anxieties. Aluminum nitride demonstrates premium ecological stability compared to numerous various other ceramics. It is extremely resistant to corrosion from acids, alkalis, and molten steels, making sure longevity in aggressive chemical environments. However, AlN is vulnerable to hydrolysis when revealed to moisture at elevated temperature levels, which can degrade its surface and decrease thermal efficiency.
To mitigate this problem, protective finishings such as silicon nitride (Si three N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are often applied to improve wetness resistance. Furthermore, cautious sealing and packaging strategies are carried out throughout gadget setting up to preserve the integrity of AlN substratums throughout their life span. As environmental regulations come to be extra stringent, the non-toxic nature of AlN also positions it as a preferred option to beryllium oxide, which positions health and wellness dangers throughout handling and disposal.
Final thought
Light weight aluminum nitride porcelains represent a course of sophisticated materials distinctively suited to attend to the expanding needs for efficient thermal administration and electric insulation in high-performance electronic and optoelectronic systems. Their remarkable thermal conductivity, chemical security, and compatibility with semiconductor modern technologies make them the most excellent substratum material for a large range of applications– from automotive power components to deep UV LEDs and high-temperature sensors. As construction modern technologies continue to progress and economical manufacturing approaches develop, the fostering of AlN substrates is anticipated to rise dramatically, driving technology in next-generation electronic and photonic devices.
