1. Essential Structure and Structural Architecture of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Product Class

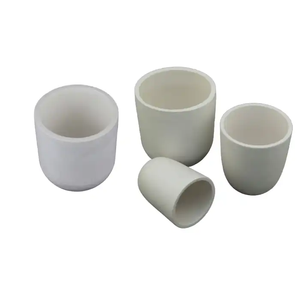

(Transparent Ceramics)
Quartz porcelains, also referred to as merged quartz or merged silica ceramics, are sophisticated not natural materials stemmed from high-purity crystalline quartz (SiO ₂) that undertake regulated melting and combination to create a thick, non-crystalline (amorphous) or partially crystalline ceramic structure.
Unlike traditional ceramics such as alumina or zirconia, which are polycrystalline and made up of multiple phases, quartz ceramics are predominantly made up of silicon dioxide in a network of tetrahedrally collaborated SiO ₄ units, supplying remarkable chemical pureness– usually exceeding 99.9% SiO TWO.
The distinction between integrated quartz and quartz porcelains lies in processing: while merged quartz is commonly a completely amorphous glass created by fast air conditioning of molten silica, quartz porcelains might involve regulated condensation (devitrification) or sintering of fine quartz powders to attain a fine-grained polycrystalline or glass-ceramic microstructure with improved mechanical effectiveness.
This hybrid technique incorporates the thermal and chemical stability of integrated silica with boosted crack toughness and dimensional security under mechanical tons.
1.2 Thermal and Chemical Security Devices
The exceptional performance of quartz porcelains in extreme environments originates from the strong covalent Si– O bonds that form a three-dimensional connect with high bond power (~ 452 kJ/mol), providing exceptional resistance to thermal deterioration and chemical strike.
These products display an exceptionally low coefficient of thermal development– roughly 0.55 × 10 ⁻⁶/ K over the array 20– 300 ° C– making them extremely resistant to thermal shock, a vital characteristic in applications including fast temperature level biking.
They maintain structural stability from cryogenic temperature levels approximately 1200 ° C in air, and even higher in inert atmospheres, prior to softening starts around 1600 ° C.
Quartz ceramics are inert to many acids, including hydrochloric, nitric, and sulfuric acids, because of the stability of the SiO two network, although they are at risk to strike by hydrofluoric acid and solid antacid at elevated temperature levels.
This chemical durability, incorporated with high electrical resistivity and ultraviolet (UV) transparency, makes them suitable for use in semiconductor processing, high-temperature heaters, and optical systems subjected to rough conditions.
2. Production Processes and Microstructural Control
( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz porcelains entails innovative thermal processing techniques made to preserve purity while accomplishing wanted density and microstructure.
One typical method is electric arc melting of high-purity quartz sand, complied with by regulated air conditioning to develop merged quartz ingots, which can then be machined right into components.
For sintered quartz porcelains, submicron quartz powders are compacted using isostatic pushing and sintered at temperature levels between 1100 ° C and 1400 ° C, often with minimal ingredients to advertise densification without causing extreme grain growth or phase transformation.
An essential challenge in processing is preventing devitrification– the spontaneous condensation of metastable silica glass right into cristobalite or tridymite stages– which can compromise thermal shock resistance because of volume adjustments throughout stage changes.
Producers employ accurate temperature control, fast cooling cycles, and dopants such as boron or titanium to subdue undesirable formation and keep a stable amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Manufacture
Recent advances in ceramic additive production (AM), specifically stereolithography (RUN-DOWN NEIGHBORHOOD) and binder jetting, have enabled the construction of intricate quartz ceramic parts with high geometric accuracy.
In these procedures, silica nanoparticles are put on hold in a photosensitive material or precisely bound layer-by-layer, followed by debinding and high-temperature sintering to attain complete densification.
This method decreases material waste and permits the production of intricate geometries– such as fluidic channels, optical tooth cavities, or heat exchanger components– that are challenging or impossible to accomplish with standard machining.
Post-processing methods, consisting of chemical vapor seepage (CVI) or sol-gel coating, are in some cases applied to seal surface area porosity and enhance mechanical and ecological toughness.
These technologies are increasing the application extent of quartz porcelains into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and personalized high-temperature components.
3. Useful Characteristics and Efficiency in Extreme Environments
3.1 Optical Transparency and Dielectric Habits
Quartz porcelains exhibit special optical buildings, including high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them important in UV lithography, laser systems, and space-based optics.
This openness arises from the lack of electronic bandgap shifts in the UV-visible variety and marginal spreading due to homogeneity and low porosity.
On top of that, they have outstanding dielectric buildings, with a low dielectric constant (~ 3.8 at 1 MHz) and minimal dielectric loss, allowing their usage as protecting components in high-frequency and high-power electronic systems, such as radar waveguides and plasma activators.
Their ability to keep electrical insulation at raised temperatures additionally improves integrity in demanding electric environments.
3.2 Mechanical Behavior and Long-Term Durability
Despite their high brittleness– an usual characteristic among ceramics– quartz porcelains demonstrate great mechanical stamina (flexural toughness approximately 100 MPa) and exceptional creep resistance at high temperatures.
Their hardness (around 5.5– 6.5 on the Mohs range) gives resistance to surface area abrasion, although treatment must be taken during managing to prevent breaking or fracture proliferation from surface defects.
Ecological resilience is another vital advantage: quartz ceramics do not outgas substantially in vacuum, resist radiation damage, and keep dimensional stability over prolonged direct exposure to thermal cycling and chemical atmospheres.
This makes them recommended materials in semiconductor construction chambers, aerospace sensors, and nuclear instrumentation where contamination and failing have to be decreased.
4. Industrial, Scientific, and Arising Technological Applications
4.1 Semiconductor and Photovoltaic Manufacturing Solutions
In the semiconductor sector, quartz porcelains are ubiquitous in wafer processing devices, including heater tubes, bell jars, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their pureness avoids metallic contamination of silicon wafers, while their thermal security makes certain consistent temperature circulation during high-temperature handling steps.
In photovoltaic manufacturing, quartz components are utilized in diffusion heaters and annealing systems for solar cell manufacturing, where constant thermal profiles and chemical inertness are important for high return and efficiency.
The demand for bigger wafers and higher throughput has actually driven the development of ultra-large quartz ceramic structures with enhanced homogeneity and minimized flaw density.
4.2 Aerospace, Protection, and Quantum Technology Assimilation
Beyond industrial handling, quartz ceramics are used in aerospace applications such as missile assistance home windows, infrared domes, and re-entry car parts because of their ability to withstand extreme thermal gradients and wind resistant stress.
In protection systems, their openness to radar and microwave regularities makes them suitable for radomes and sensing unit real estates.
Much more just recently, quartz porcelains have actually located functions in quantum innovations, where ultra-low thermal development and high vacuum cleaner compatibility are required for precision optical dental caries, atomic catches, and superconducting qubit units.
Their ability to reduce thermal drift makes certain long comprehensibility times and high dimension precision in quantum computing and picking up systems.
In recap, quartz ceramics represent a class of high-performance materials that connect the space in between traditional porcelains and specialized glasses.
Their unrivaled combination of thermal stability, chemical inertness, optical openness, and electric insulation makes it possible for innovations operating at the limits of temperature level, purity, and precision.
As manufacturing techniques evolve and require expands for products capable of standing up to progressively severe conditions, quartz porcelains will certainly continue to play a foundational function beforehand semiconductor, power, aerospace, and quantum systems.
